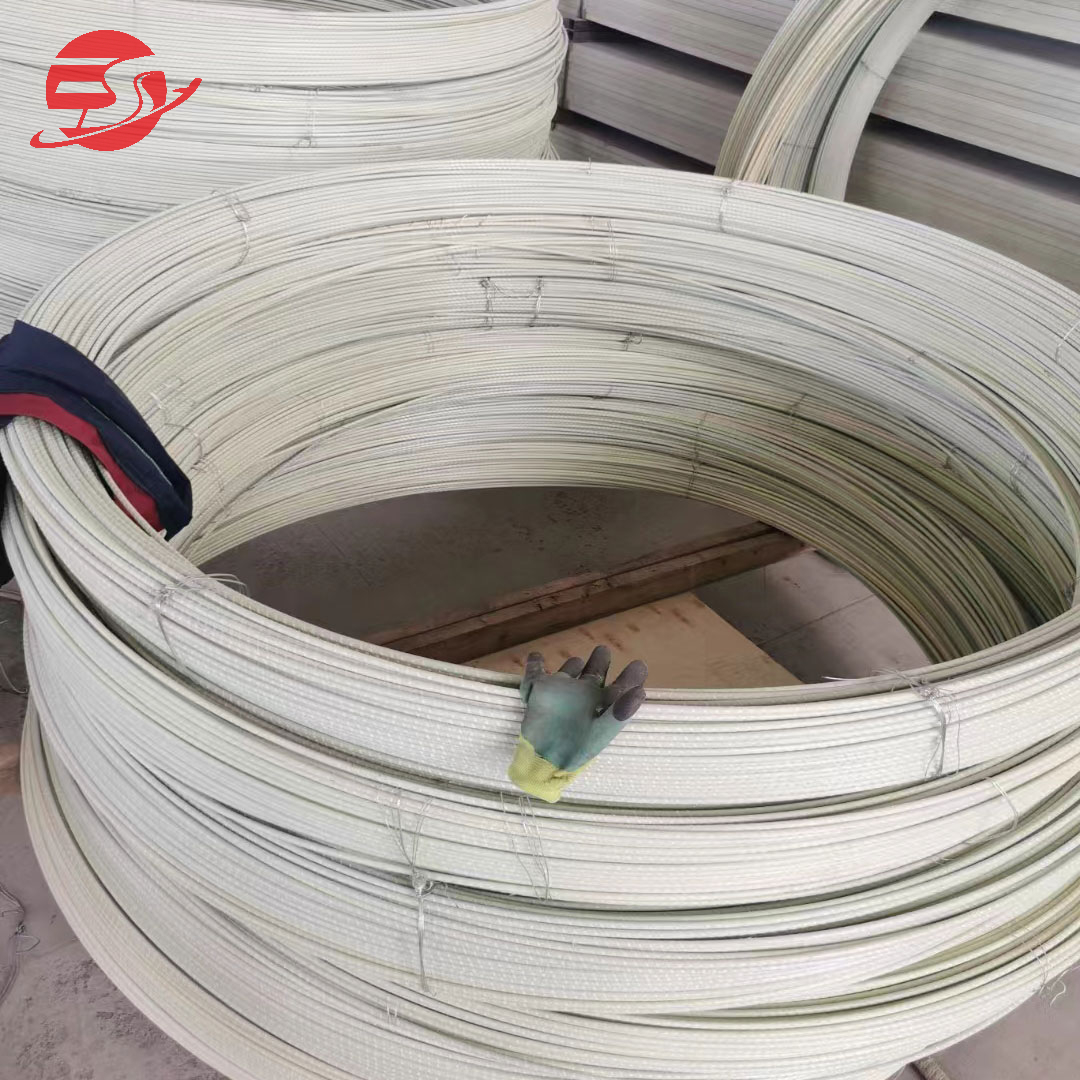

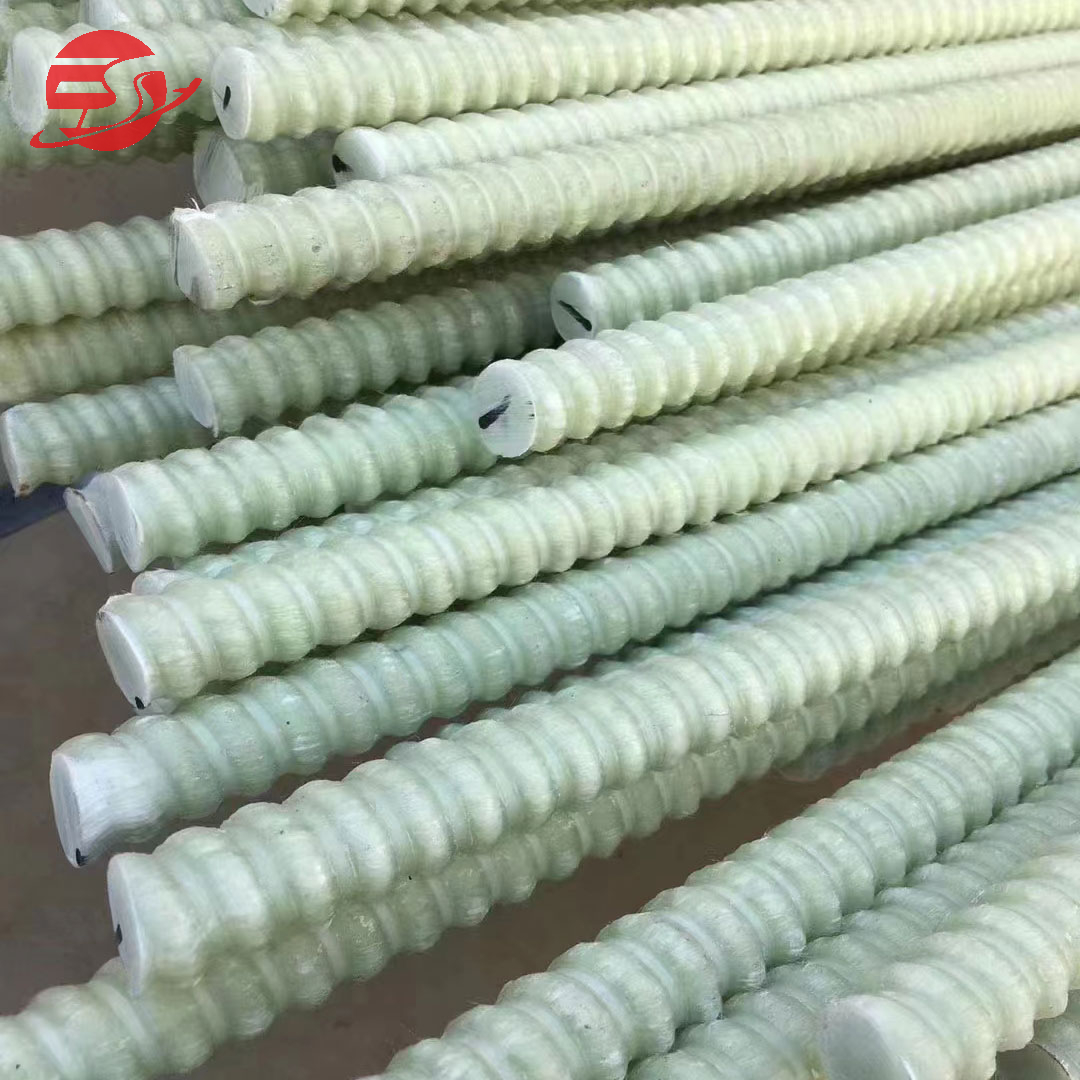

Glass Fiber Rib
Glass fiber reinforced plastic rebar (GFRP) is a kind of fiber reinforced composite material. It has the characteristics of light weight, high strength, corrosion resistance, easy cutting and non-magnetic. It is widely used in pavement deck pavement, foundation pit construction, coastal engineering, tunnel new method, construction, subway continuous walls, retaining piles, etc.
+86 13396443111
ess@esssale.com
Contact Us

◉ Product Details

Glass fiber reinforced plastic rebar (GFRP) is a kind of fiber reinforced composite material. It has the characteristics of light weight, high strength, corrosion resistance, easy cutting and non-magnetic. It is widely used in pavement deck pavement, foundation pit construction, coastal engineering, tunnel new method, construction, subway continuous walls, retaining piles, etc.

Fiber reinforced composite material is a material formed by high-performance fiber and synthetic resin matrix and curing agent by appropriate molding process; high-performance fiber is reinforcing material and synthetic resin is matrix material. The fiber has high tensile strength and is the main supplier of the strength of the glass fiber rebar. It mainly bears the load, the matrix material has the function of bonding and transmitting shear force, and its physical properties can affect the physical properties of the fiber reinforced material.


Glass fiber rib

Related standards
Serial numberStandardstandard name
1GB    50608-2010Technical specification for application of fiber reinforced composite
construction engineering
2JG/T406-2013Glass fiber reinforced concrete for civil engineering
3SO    10406-1-2013Fibre-reinforced polymer (FRP)reinforcement of concrete.Test
methods.Part 1:FRP bars and grids
4ACl440.3R-04Guide Test Methods for Fiber-ReinforcedPolymers    (FRPs)for
Reinforcing orStrengthening Concrete Structures
5CSA-S806-02-2002Design  and Construction of Building Components with Fibre Re-
inforced Polymers
 Glass fiber rib common models and technical parameters
Specification model中8φ10φ12φ14φ16φ18φ20φ22φ25φ28φ30φ32φ34φ36
ExteriorUniform texture,no bubbles,no cracks,thread shape,tooth pitch should be neat,there should be no
damage
Rod diameter810121416182022252830323436
tensile strength≥600≥550≥550≥450
Shear strength≥110≥110≥110≥110≥110≥110≥110≥110≥110≥110≥110≥110≥110≥110
Ultimate tensile
strain
≥1.2≥1.2≥1.2≥1.2≥1.2≥12≥1.2≥1.2≥1.2≥1.2≥12≥1.2≥1.2≥12
Elastic Modulus≥40≥40≥40≥40≥40≥40≥40≥40≥40≥40≥40≥40≥40≥40
Direct deviation±0.2±0.3±0.4
Straightness≤3≤4≤5
reference weight0.10.150.210.280.320.430.550.610.951.151.361.511.751.91

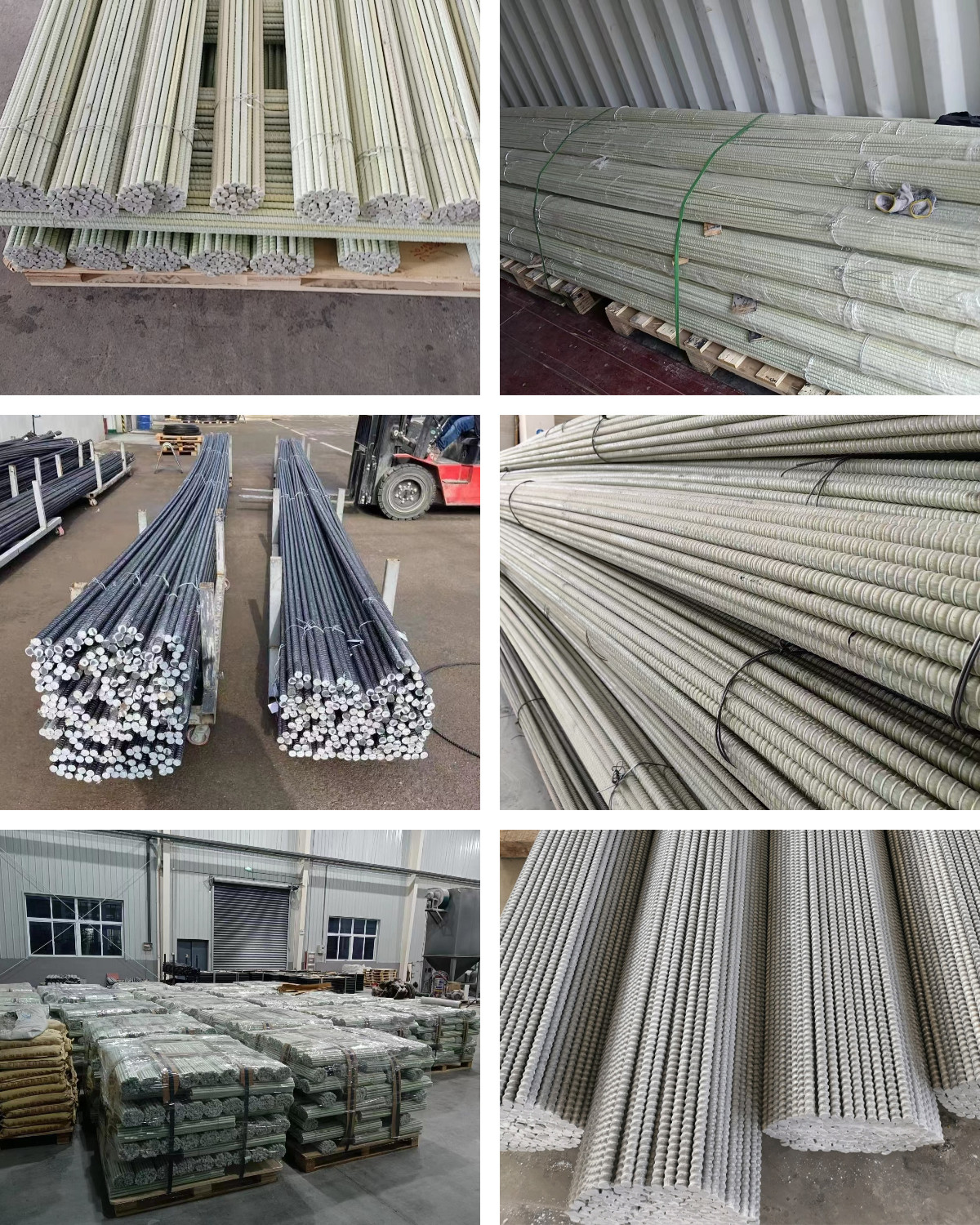

◉ Product Show

下载 - 2024-04-01T112329.287.jpg
